Viking 12 Panel Door (3-glazing)

Product code: UV-PAN-V12

Get a Quote

Add to compare

Standard Configuration

Energy Efficient

Additional Options

Safety

Sun protection

PAS24 solution

Note: U-value (0.60 – 1.2) indicates thermal transmittance of window. Smaller value equals better thermal insulation.

Aluminium Cladding	Optional external alucladding
Glazing	45 mm 3-glazing, two LowE glass, argon filled
Frame Depth	116 mm (128,5 mm with alucladding)
Sound Insulation	Rw = 21 dB
Material of Sash and Frame	Door leaf: insulated panel (68 mm); door frame: qlue-lam pine; quality class A1-A3; aluminium/oak threshold
Color of sash gaskets	Grey
Thermal transmittance	Uw = 1,0 W/m²K (0,9 x 2,1 m door with standard glass)
Hardware	Abloy hinges; Fix or Maco espagnolette and Fix handle; ASSA of Euro profile cylinder
Security	PAS24 solution option
Air tightness	Class 4 (600 Pa - outw.op); NPD - inw.op.
Water tightness	Class 7A (300 Pa - outw.op); NPD - inw.op.
Resistance to wind load	Class 4C (1600 Pa - outw.op); NPD - inw.op.

Material of frame and sash

Frame: Glue-lam pine; quality class A1-A3

Door leaf: insulated panel

Finishing

Teknos Aquatop

varvikaart 300px

RAL; NCS and translusent systems:

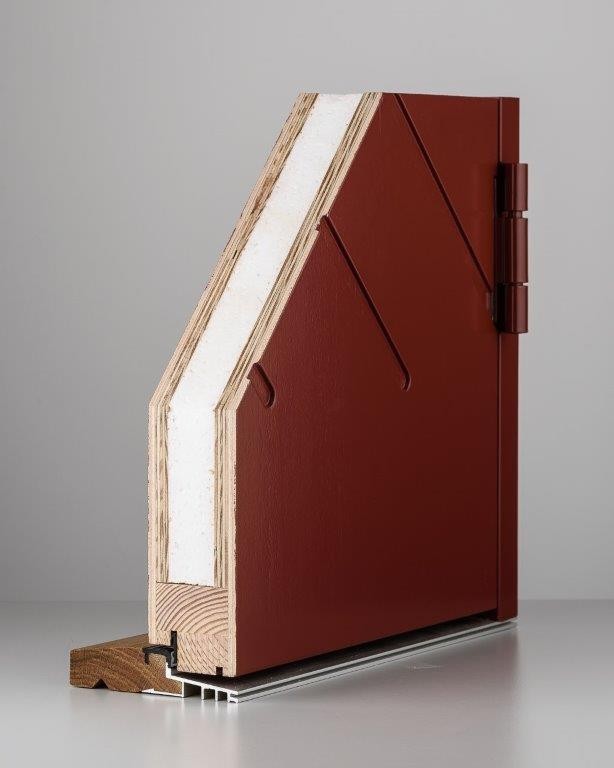

Panel door leaf is a composite product of timber frame covered with weather proof plywood "skins" (including moisture protection) and filled with insulation material. With the modern CNC technology different grooves and glazing options can be used for design purposes.

Panel door standard designs

Standard sizes are width 880-1078 mm and height 2040-2300 mm.
Door design options and hardware types can be found on the illustrations below.
Lead time 3 weeks.
Lower price compared to special design doors.
Ask for more detailed information from sales representative!

Click on the image below to see standard design options:


PR.100	PR.109	PR.110	PR.111	PR.112**	PR.113	PR.114**

NB! Pictures above are illustrations - specific tone, glass type, hardware configuration may be different than current illustrations.

** Pattern on both sides

Selction of handles


ASSA 1918 chromium	ASSA 1918 brass	ASSA 1918 matte barss	ASSA 1918 dark oxide


ASSA 1956 chromium	ASSA 1956 brass	ASSA 1956 matte brass	ASSA 1956 dark oxide


Assa 6638 chromium	Assa 6638 brass	Assa 6638 matte brass	Assa 6638 dark oxide


Assa 6640 chromium	Assa 6640 brass	Assa 6640 matte brass	Assa 6640 dark oxide


Fix 83 handle for balcony door	ASSA 835S handle for balcony door


Panel door with ASSA 6638 handle	Panel door with ASSA 6640 handle	Panel door with Mila ProSecure handle	Panel door with pull handle

Glasing options

Click on the picture below to browse for more:

Glazing bar options

Viking Window manufactures both outward and inward opening traditional entrance doors, patio, and balcony doors*. Doors are made of solid wood profiles. In Viking 12 panel doors, 3-glazing is used, and different design options due to glazing and groove patterns are available. Thermal transmittance Uw = 1.0 W/m²K.**

It is possible to manufacture single or double leaf doors. Finishing according RAL, NCS (paint), or Vikings (lacquer) tone catalog by customer's choice preference. Available as aluminium clad door too.

Closing system by Swedish lock manufacturer ASSA: hinges and three-point locking espagnolette. Patio and balcony doors have a more simple locking system.

See the illustrations of different door models. Discuss options with a sales representative!

----------

* For Viking Window AS door = door set (e.g. leaf, frame and threshold; as a standard, we supply doors with handles and cylinders).

** Thermal transmittance depends on glazing types and dimensions and the number of glazing openings in the door leaf. Product U-values are specified in the technical specification of the order.
