SW17 Panel Door (3-glazing)

Product code: UV-SW17

Standard Configuration


Additional Options

Sun protectionSun protection
PAS24 solutionPAS24 solution

Note: U-value (0.60 – 1.2) indicates thermal transmittance of window. Smaller value equals better thermal insulation.

Aluminium Cladding Optional external alucladding
Glazing 48 mm 3-glazing; 2 LowE glasses, argon filled
Frame Depth Variable: 92...120 mm (94 - 122 mm with alucladding)
Sound Insulation Rw = 21 dB
Material of Sash and Frame Door leaf: insulated panel; door frame: qlue-lam pine; quality class A1-A3; fiber/oak threshold
Number of sash gaskets 1 gasket on door leaf, additional gasket on door frame
Color of sash gaskets Grey, black
Thermal transmittance Uw = 0,80 W/m²K (0,9 x 2,1 m door with standard glazing)
Hardware Simonswerk hinges (balcony door with ASSA hinges); ASSA or Maco espagnolette and handle
Security PAS24 solution option
Air tightness Class 4 (600 Pa)
Water tightness Class 9A (600 Pa - outw.op); class 5A (200 Pa - inw.op)
Resistance to wind load Class 4C (1600 Pa)

Door leaf: W 550 - 1073 mm; H 1651 - 2390 mm

Material of frame and sash

Frame: Glue-lam pine; quality class A1-A3

Door leaf: insulated panel


Teknos Aquatop

varvikaart 300px

RAL; NCS and translusent systems:


Glasing options

Click on the picture below to browse for more:

glazing options 1

Glazing bar options on the glass

(Click on the icon to see larger picture)

01 00 01 150px 01-SWS-01-150px.jpg 01-00-03-150px.jpg 01-SWS-03-150px.jpg
Glazing bars 01-00-01
outside Norwegian,
inside Norwegian
Glazing bars 01-SWS-01
outside Norwegian,
inside Norwegian + SWS
Glazing bars 01-00-03
outside Norwegian,
inside Swedish
Glazing bars 01-SWS-03
outside Norwegian,
inside Swedish + SWS
03 00 03 150px 03-SWS-03-150px.jpg 05-00-05-150px.jpg 04-00-00-150px.jpg
Glazing bars 03-00-03
outside Swedish,
inside Swedish
Glazing bars 03-SWS-03
outside Swedish,
inside Sedish +SWS
Glazing bars 05-00-05
outside and inside
16mm bar

Removable glazing
bar 04-00-00


Selction of handles




ASSA 1918 chromium ASSA 1918 brass ASSA 1918 matte barss ASSA 1918 black

ASSA 1956 chromium ASSA 1956 brass ASSA 1956 matte brass ASSA 1956 black
Assa 6638 chromium Assa 6638 brass Assa 6638 matte brass Assa 6638 black
Assa 6640 chromium Assa 6640 brass Assa 6640 matte brass Assa 6640 black
Blank ASSA6638 250px Blank ASSA6640 250px Blank MILA ProSecure 250px Blank toruk 250px
Panel door with ASSA 6638 handle Panel door with ASSA 6640 handle Panel door with Mila ProSecure handle Panel door with pull handle



Panel door leaf is a composite product of timber frame covered with weather proof plywood "skins" (including moisture protection) and filled with insulation material. With the modern CNC technology different grooves and glazing options can be used for design purposes.

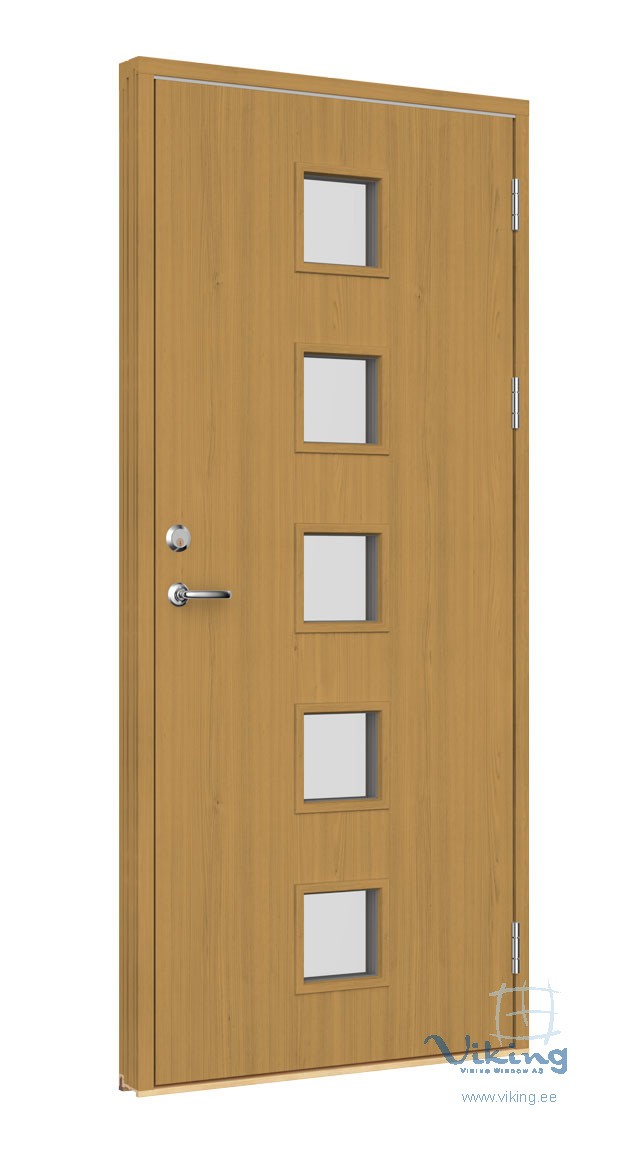

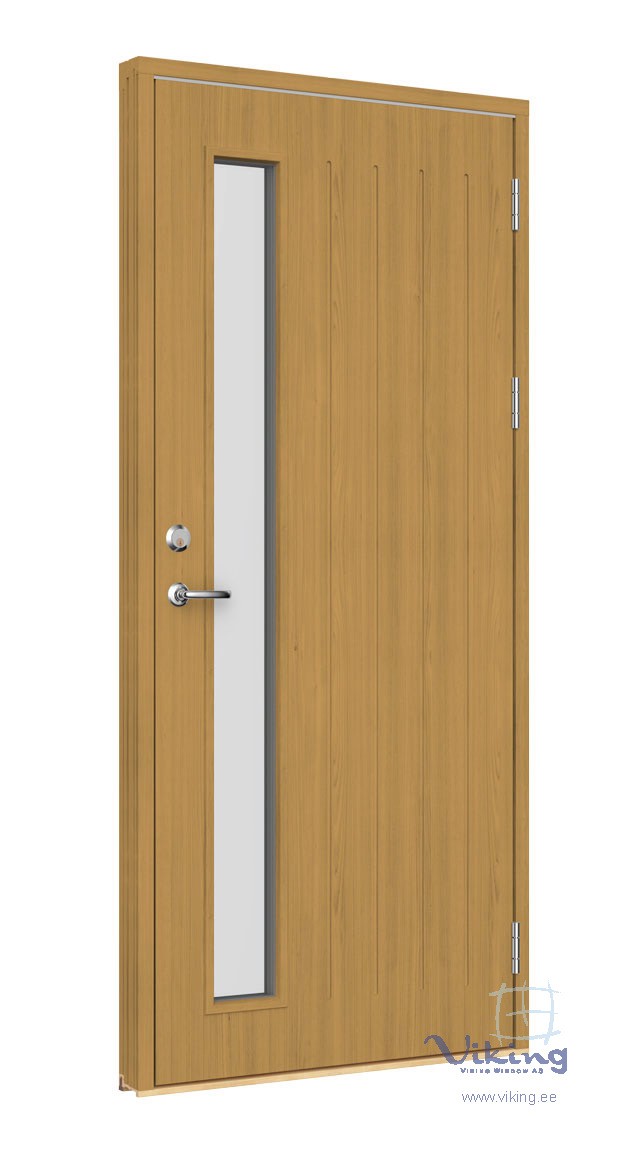

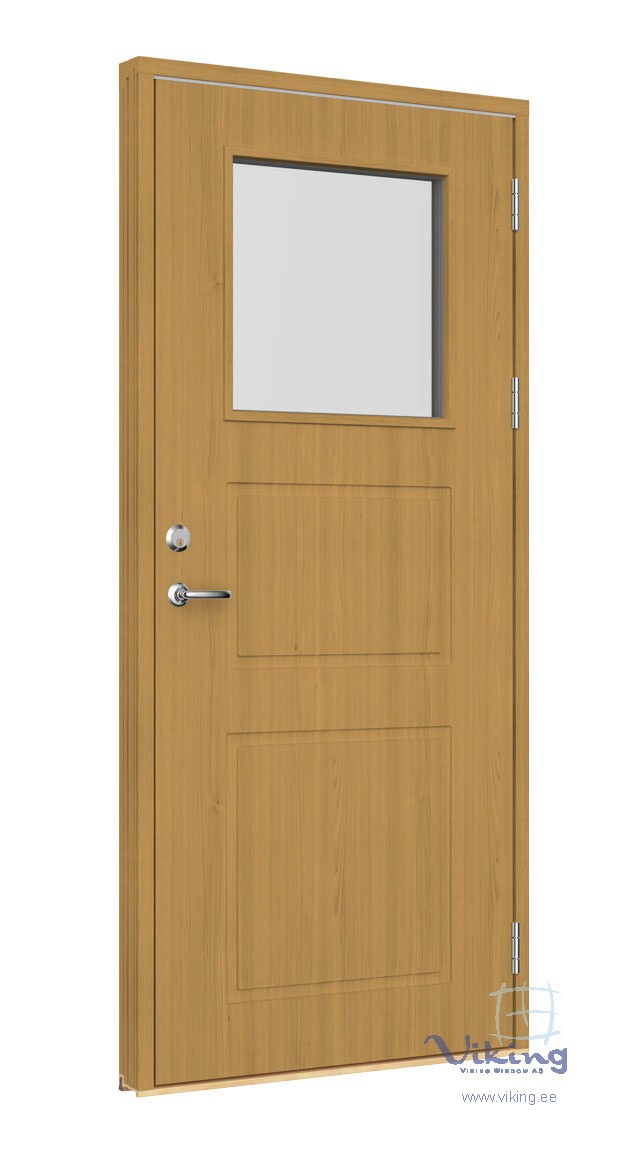

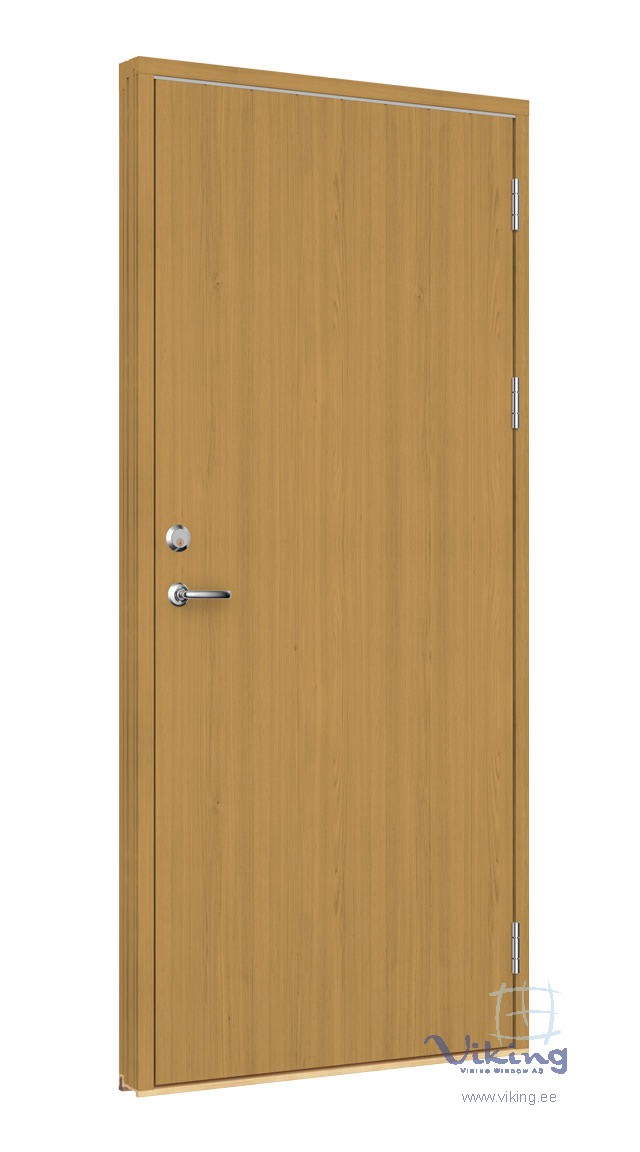

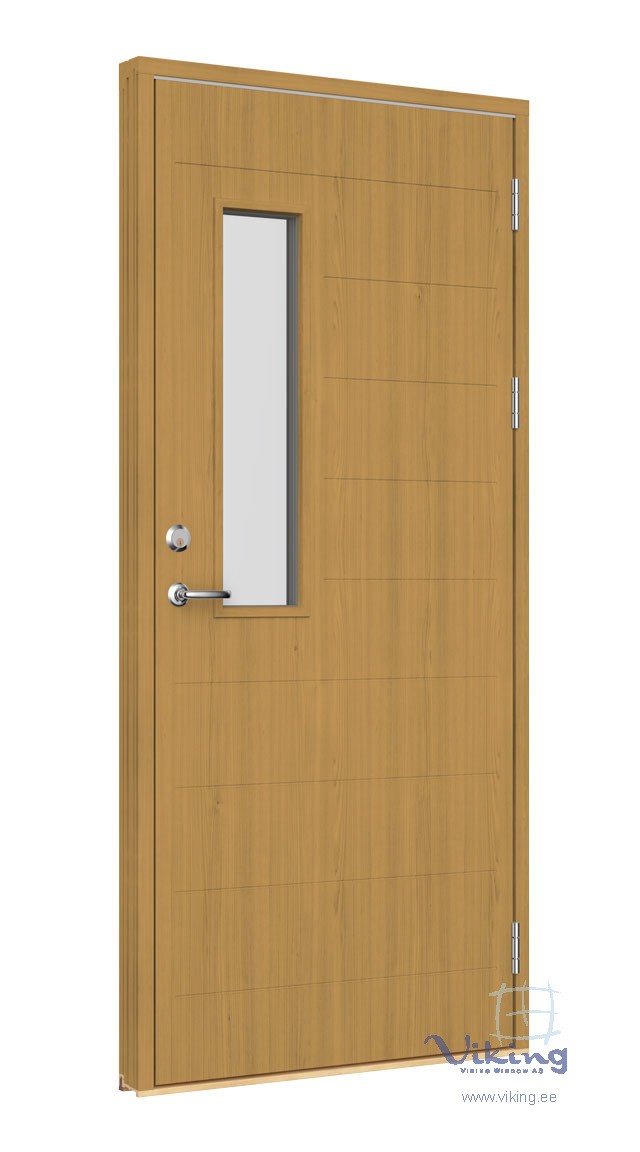

Panel door standard designs

  • Standard sizes are width 880-1078 mm and height 2040-2300 mm.
  • Door design options and hardware types can be found on the illustrations below.
  • Lead time 3 weeks.
  • Lower price compared to special design doors.
  • Ask for more detailed information from sales representative!


Click on the image below to see standard design options:


PR.100 BLANK 150px PR.109 FULL GLASS 150px PR.110 HALF GLASS 150px PR.111 SAEBY 320px PR.112 7grooves 150px PR.113 narrow glass 150px PR.114 28mm grooves 150px
PR.100   PR.109 PR.110  PR.111   PR.112**  PR.113  PR.114**


NB! Pictures above are illustrations - specific tone, glass type, hardware configuration may be different than current illustrations.

** Pattern on both sides


Outward Opening Doors:

Entrance Doors

Drawings: Panel door PDFDWG

Drawings: Aluclad door PDF and DWG


"Slim" Balcony Doors:

Drawings: Timber door PDF and DWG

Drawings: Aluclad door PDF and DWG


Inward Opening Doors:

Drawings for timber doors: Panel doors - 78 mm PDFPanel doors - 88 mm PDF

Drawings for aluclad doors: Aluclad panel doors - 78 mm PDF; Aluclad panel doors - 88 mm PDF

Drawings DWG

SW17 Entrance Door is a suitable match to SW17 windows. With 48 mm 3-glazing unit or insulated panel it's possible to achive overall U-value U = 0,80 W/m2K.

Entrance Doors

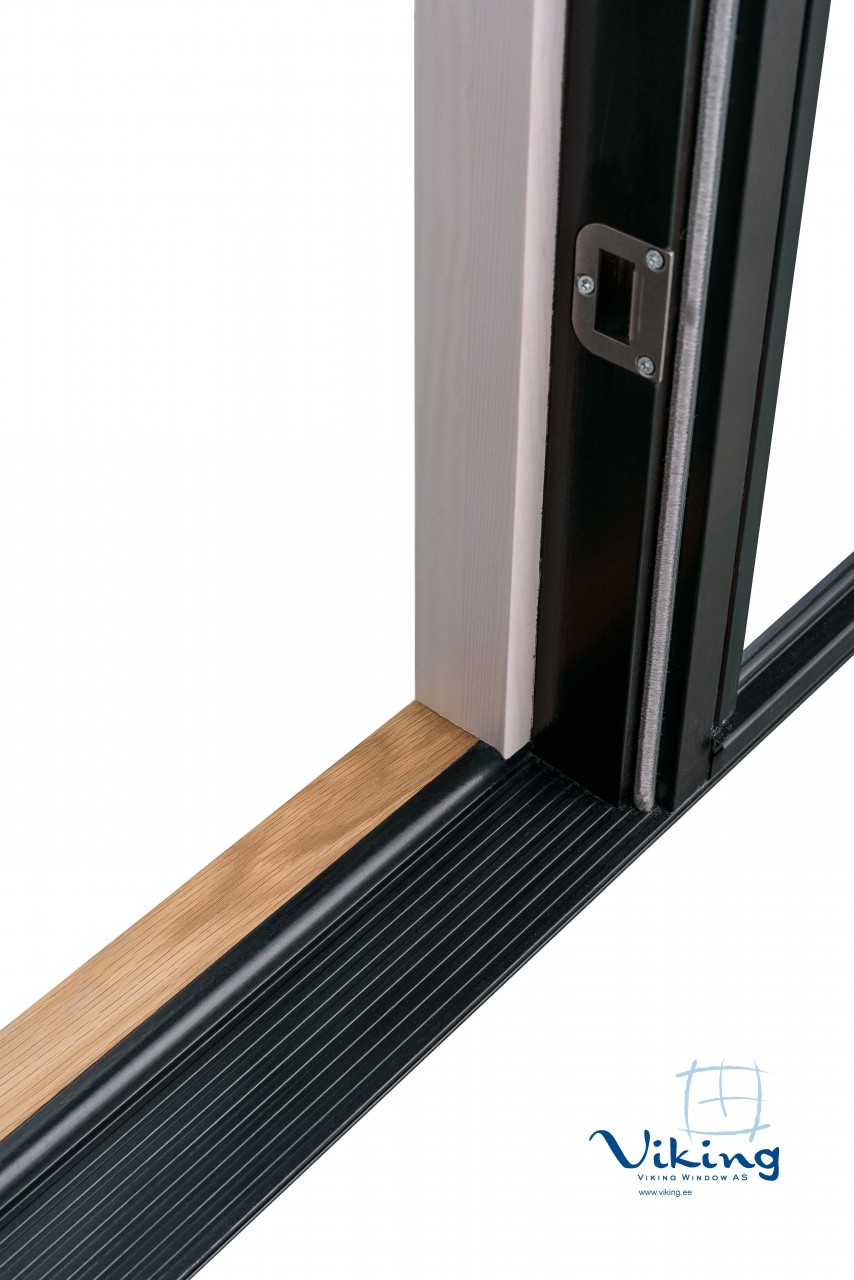

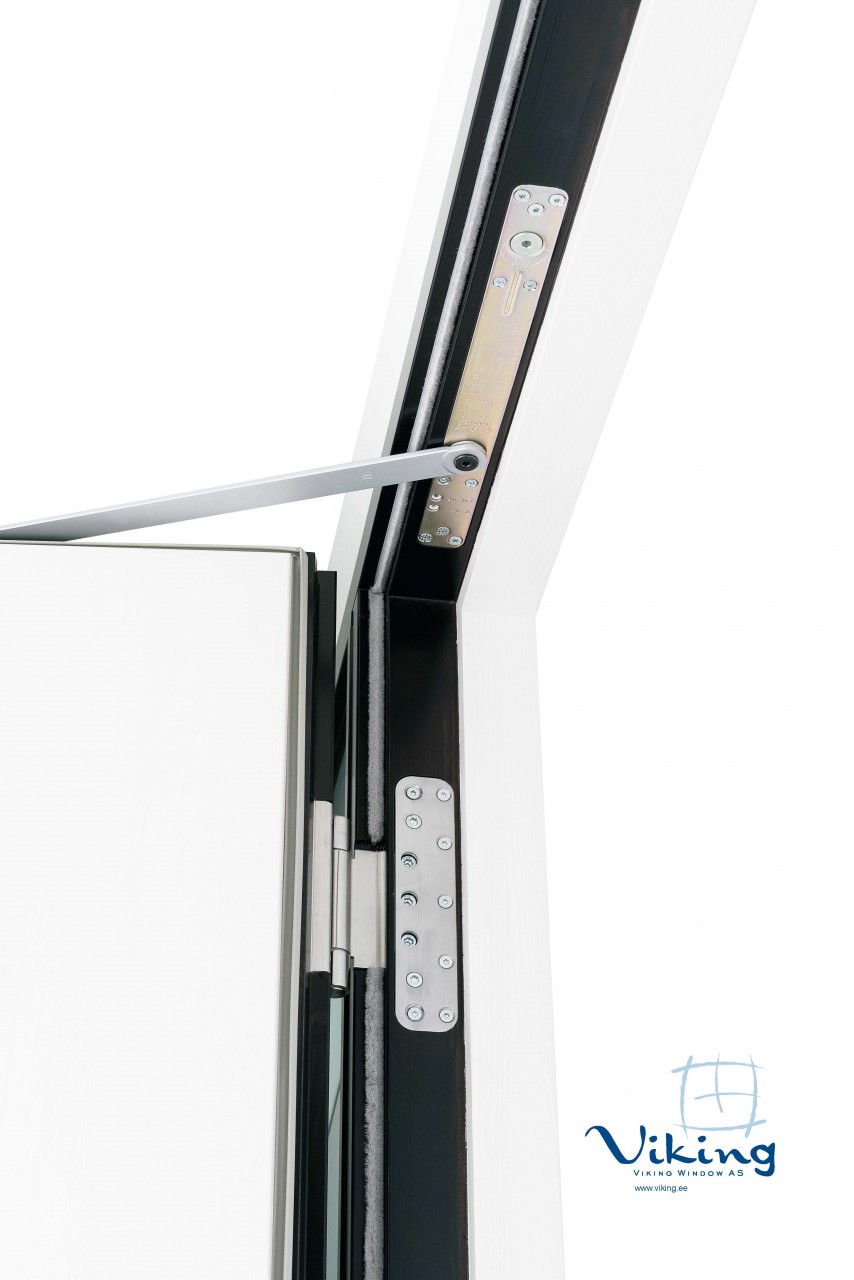

SW17 Door is either outward opening or inward opening. Door leaf is made of 78 mm insulated door panel. It uses hardware system provided either by Swedish manufacturer ASSA or by German manufacturer Maco. SW17 door hinge is 3D adjustable stainless steele Simonswerk. Availble as single or double leaf doorset, fiber threshold, wide selection of fihishing.

New design enables us to provide side lights together with the door set - i.e in the same frame.

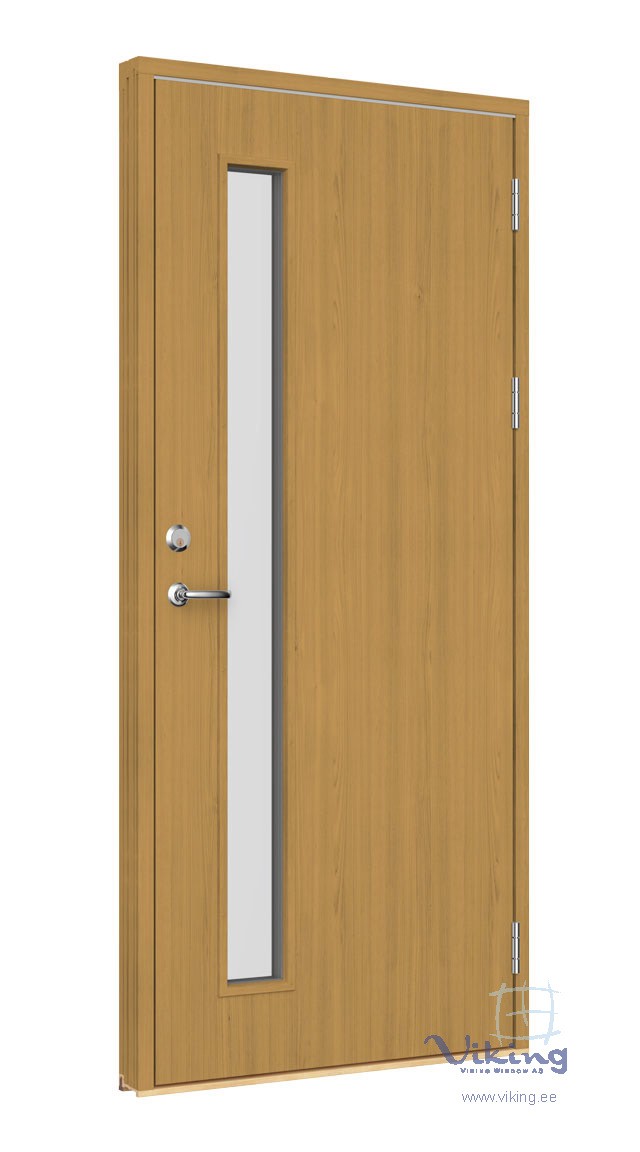

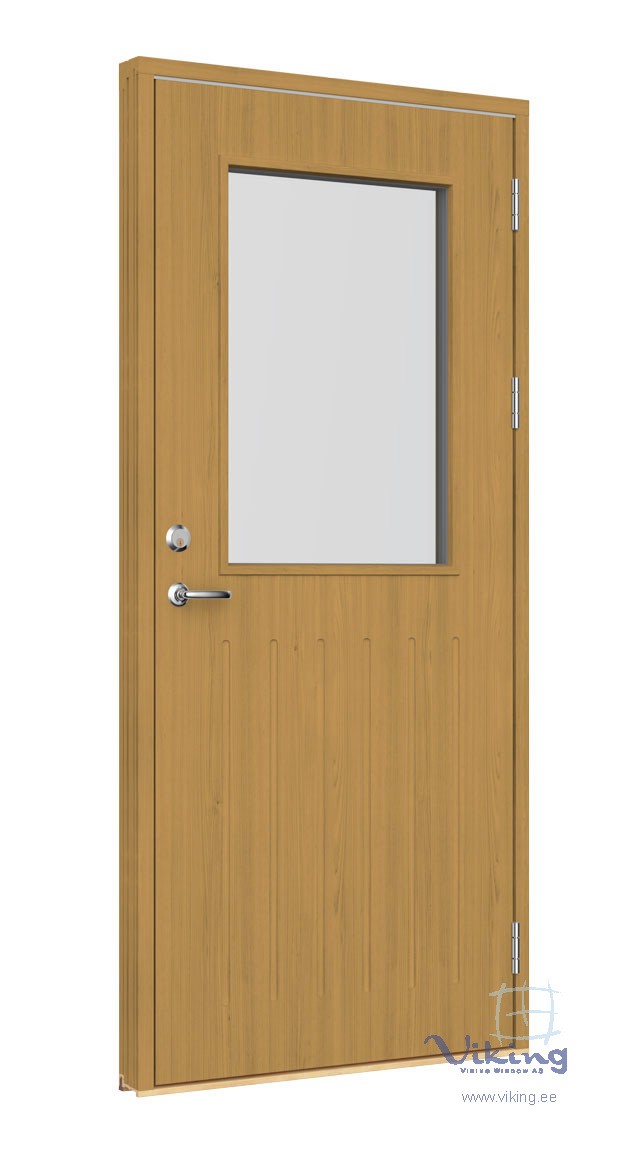

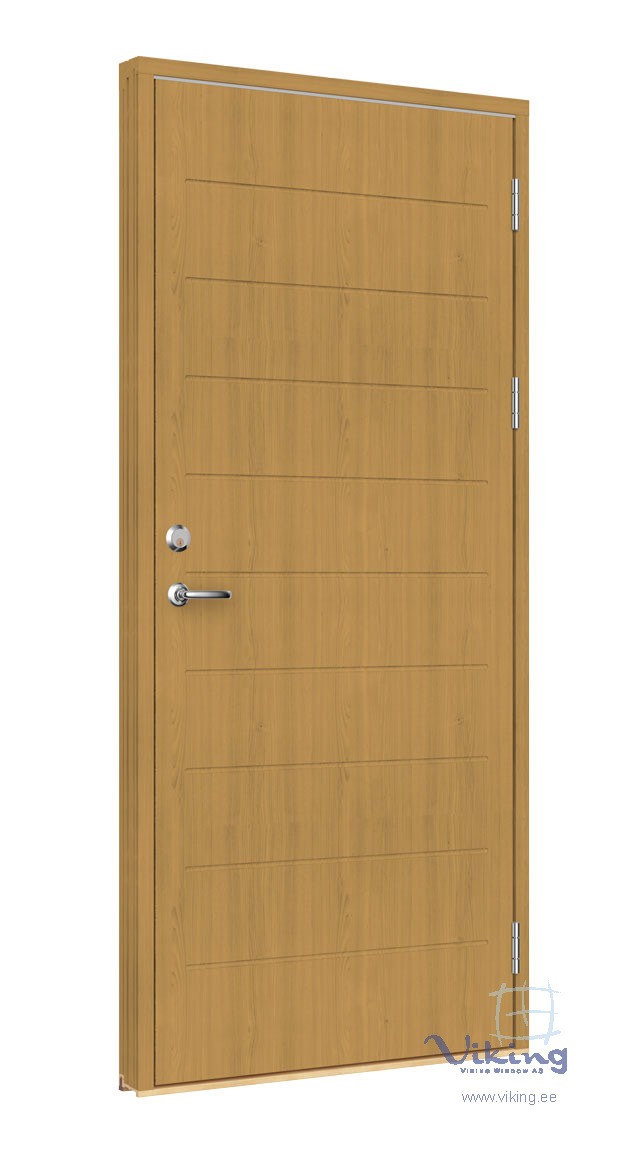

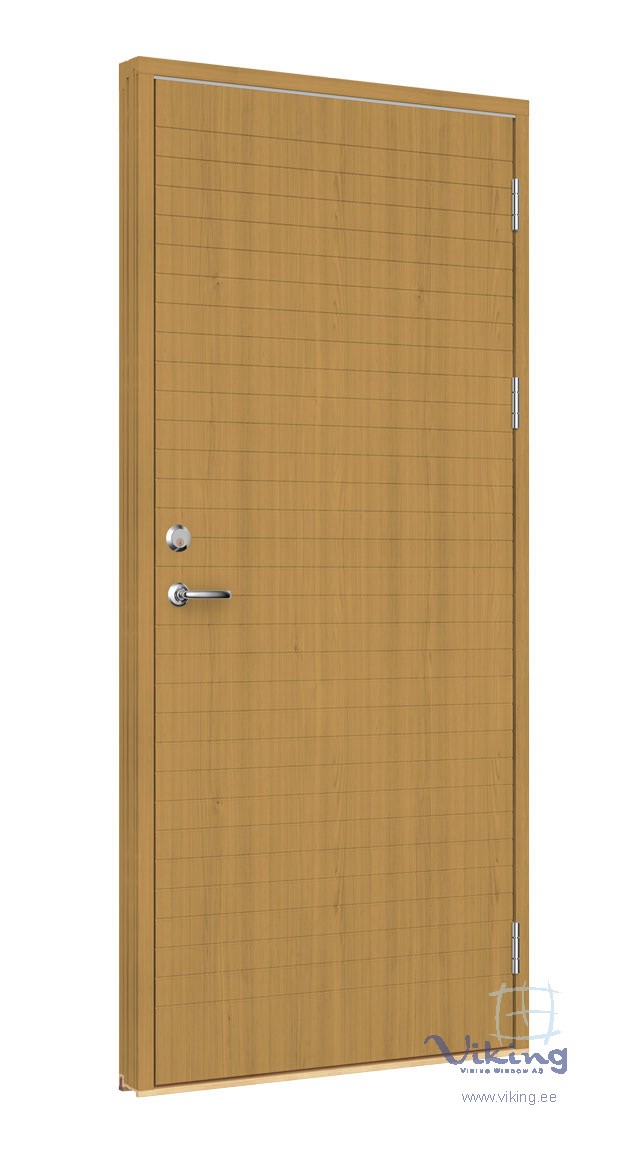

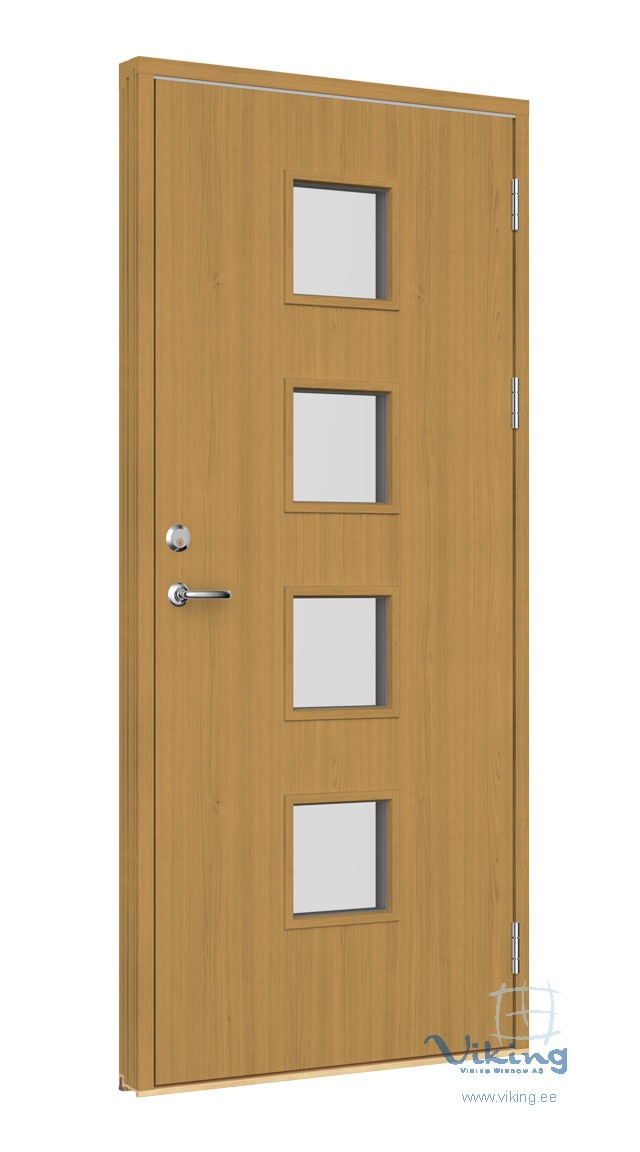

For different designs, see the gallery righ; for more designs consult with sales representative.


Balcony Doors

Balcony door profile system is slimmer, following more the window design. Hardware is Ipa espagnolette and ASSA hinges.
