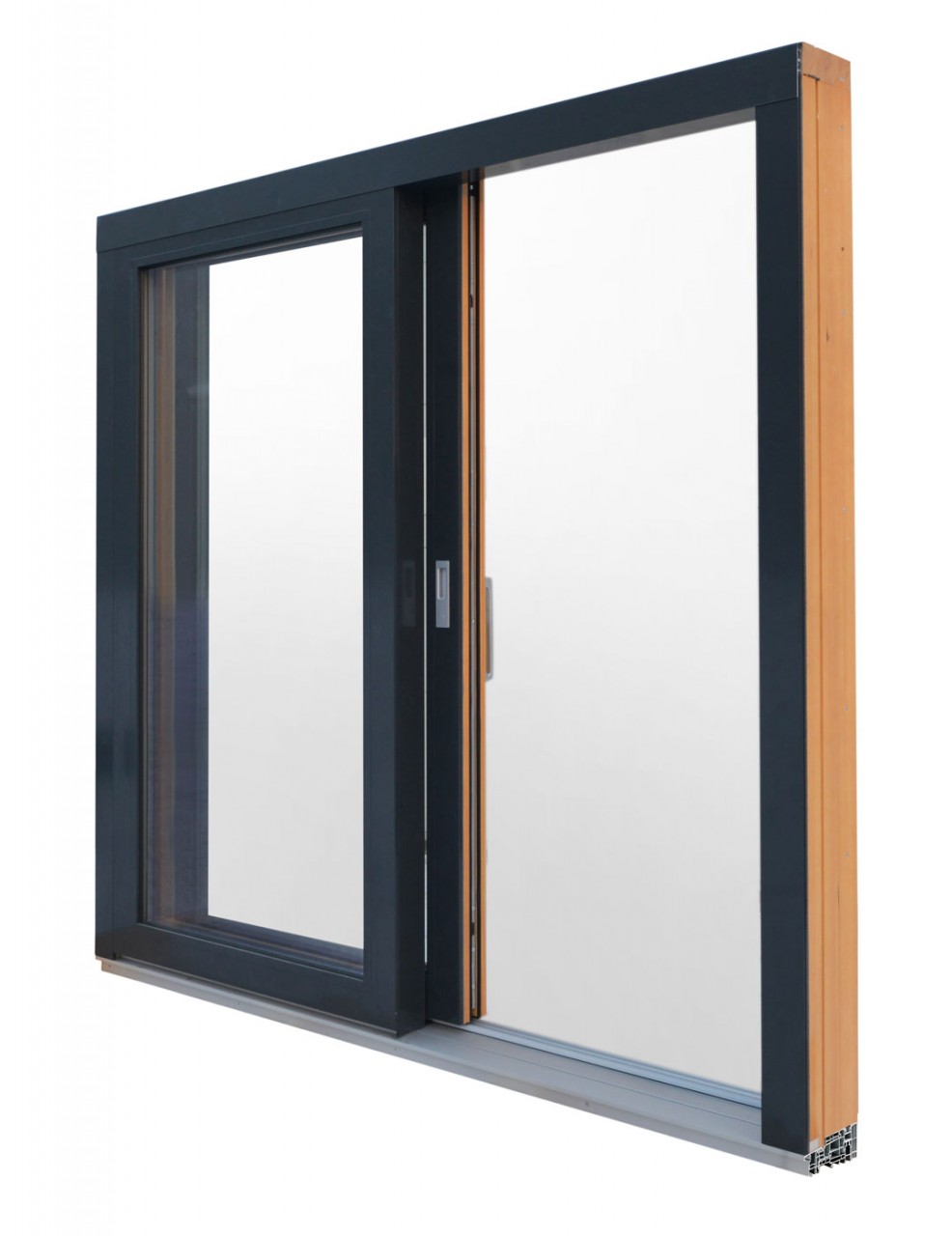

GU Lift and Slide Patio Door (2- or 3-glazing)

Product code: GULU

Standard Configuration

Energy EfficientEnergy Efficient

Additional Options

sound insulation glassessound insulation glasses
Sun protectionSun protection
PAS24 solutionPAS24 solution

Note: U-value (0.60 – 1.2) indicates thermal transmittance of window. Smaller value equals better thermal insulation.

Aluminium Cladding Optional external alu claddin
Glazing 40 mm 3-glazing, two LowE glasses, argon filled (additional option 2-glazed)
Frame Depth 184 mm (202 mm with alucladding)
Sound Insulation Rw = 34 dB (-1;-4) - standard 3-glazing
Material of Sash and Frame Glue-lam pine; quality class A1-A3
Number of sash gaskets 2 sash gaskets
Color of sash gaskets Black
Thermal transmittance Uw = 0,90 W/m²K (3-glazed); Uw = 1,40 W/m²K (2-glazed)
Hardware GU lift and slide door hardware
Security PAS24 solution option
Air tightness Class 4 (600 Pa)
Water tightness Class E750 (750 Pa)
Resistance to wind load Class 4C (1600 Pa)


W 5 900 mm x H 2 600 mm


W 8 500 mm x H 2 600 mm


W 5 900 mm x H 2 600 mm

NB! Possible to order as an assembly kit - final assembly on site.


Material of frame and sash

Glue-lam pine, Nordic timber quality class A1-A3


Teknos Aquatop

RAL; NCS and translusent systems:



Glasing options

Click on the picture below to browse for more:

glazing options 1

NB! GU Lift & Slide Patio Door construction has been upgraded since April 2018!


Drawings: Timber door PDF

Drawings: Aluclad door PDF

Drawings: Installation PDF

DWG Drwings (incl installation scteches)


Lift and slide patio door is best for locations as balckonies, terraces and other places where there is not enough room for traditional outward or inward opening solutions, or where is a need for large glazed areas.

Viking Window sliding patio doors are equipped with high quality and modern GU-934-H hinges system which has load bearing capability 300 kg. Active leafi is located on inner side of door ensuring functionality for winter times - ice and snow does not damage rails. The espagnolette and strong handle enable convenient operating and possibility to close door in ventilation position.

Sliding patio door is available both as wooden and aluminium clad door. Traditional double glazing (Ug = 1,1 W/m2K) or energy efficient triple glazing (aluclad door 52 mm glazing unit  Ug = 0.52 W/m2K; timber door 40 mm glazing unit Ug = 0.64 W/m2K) can be used.

Finishing according RAL, NCS (paint) or Vikings (lacquer) tone catalog by customer's choice preference.
