SW14 Passive Window (3-glazing)
Standard Configuration
Safety
Passive HouseAdditional Options
Sound insulation glasses
Sun protection
PAS24 solution
Passive House
Near zero energy homeNote: U-value (0.60 – 1.2) indicates thermal transmittance of window. Smaller value equals better thermal insulation.
Certificates
| Aluminium Cladding | NB! Aivailable as aluclad only |
| Glazing | 50 mm 3-glazing; two LowE glasses; argon filled |
| Frame Depth | 132,5 mm (with alucladding) |
| Sound Insulation | Rw = 35 dB (-2;-6) - with standard glazing |
| Material of Sash and Frame | Fingerjointed spruce |
| Number of sash gaskets | 3 sash gaskets |
| Color of sash gaskets | Grey |
| Thermal transmittance | Uw = 0,65 W/m²K (1,23 x 1,48 m opening standard window) |
| Hardware | PN UNI hinges; ROTO hardware; Hoppe handle |
| Security | PAS24 solution option |
| Air tightness | Class 4 (600 Pa) |
| Water tightness | Class E1500 (1500 Pa) |
| Resistance to wind load | Class 5C (2000 Pa) |

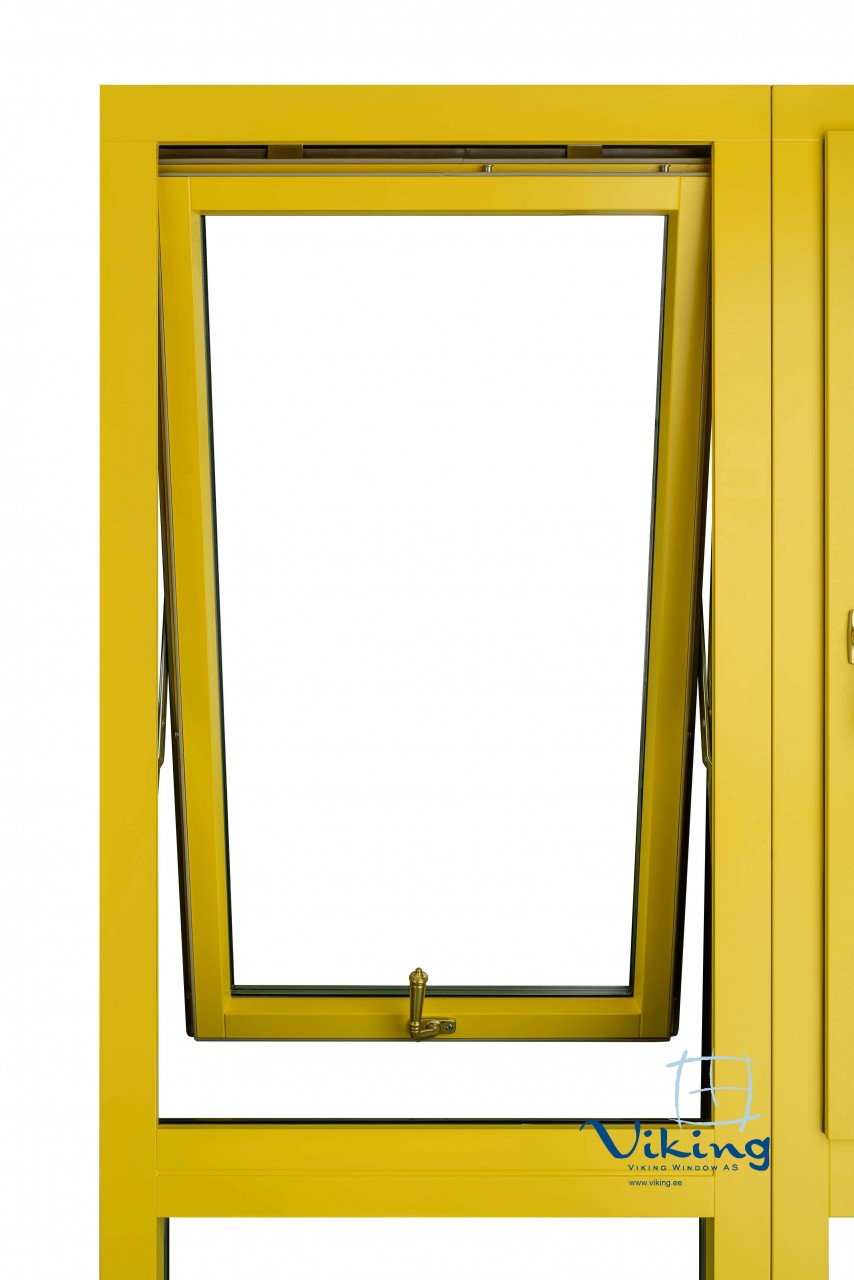

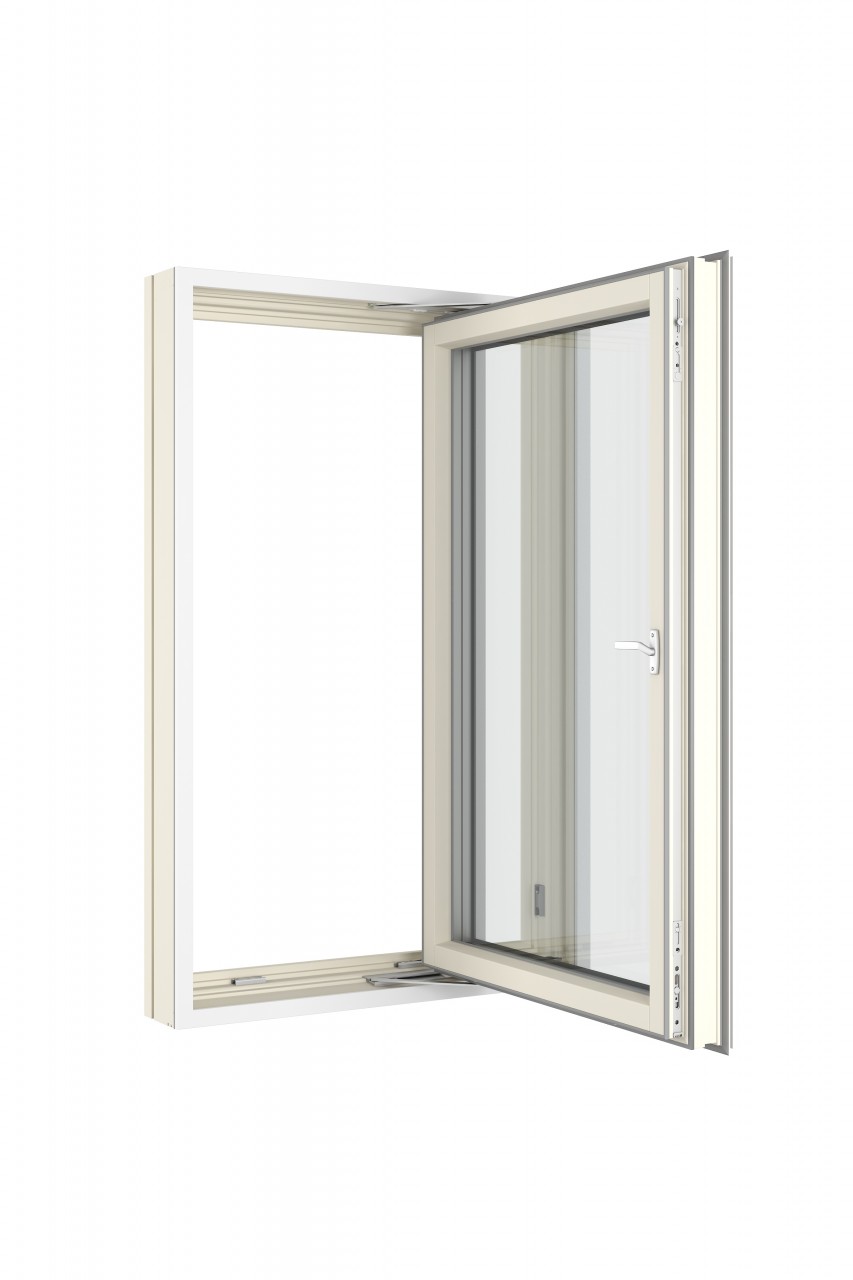

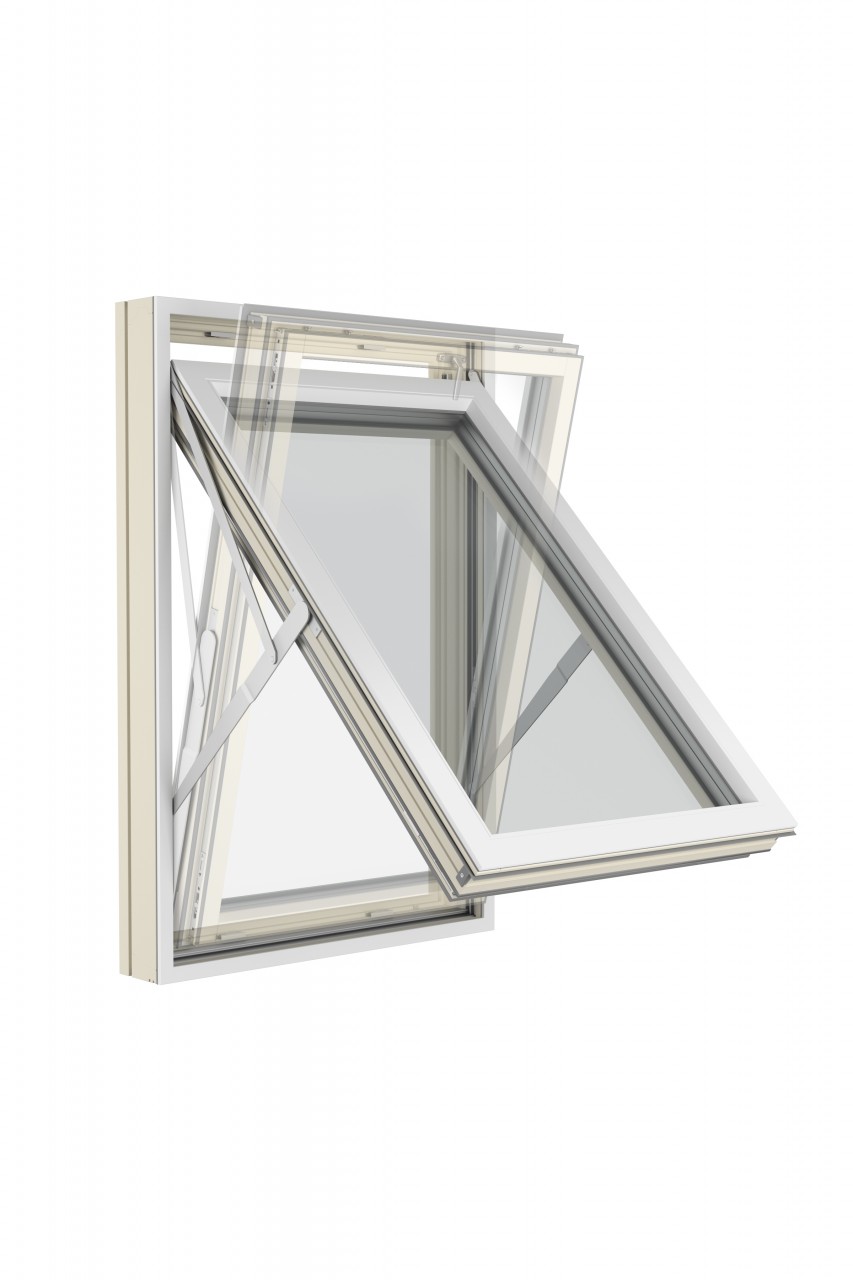

| Dimensions | Side projecting: Top hung: Top swing: |
Material of frame and sash
Finger jointed spruce; Nordic timber quality class A1-A3
Finishing
Teknos Aquatop
RAL; NCS and translusent systems:
Glass options
Click on the picture below to browse for more:
Selection of handles
(Click on the icon to see larger image)
 |
 |
 |
| Hoppe 0710LVK-U71Z | Hoppe 0710EVKS-6 | Titon |
Window boards
| Fiber boards: | |||
 |
 |
 |
 |
| A 1.0 | A 1.1 | A 2.0 | A 2.1 |
 |
 |
 |
 |
| A 3.0 | A 3.1 | A 4.0 | A 4.1 |
| Wooden boards: | |||
 |
 |
 |
 |
| A 1.0 | A 1.1 | A 2.0 | A 2.1 |
 |
 |
 |
 |
| A 3.0 | A 3.1 | A 4.0 | A 4.1 |

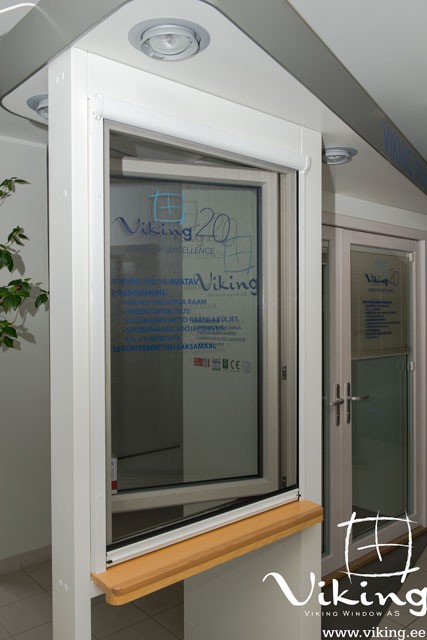

Fly screens
Standard fly screen material is dark fiberglass mesh:
Illustrations below introduce different types of fly screens applicable for SW14 window and also alternative material solutions for the screens:
SW14 fly screen types:
 |
 |
| Fiskostar blindfold | GreenteQ blindfold |
NB! For outward opening windows fly screens are fixed on the internal side - thus there must remain sufficient space for the screen frames or blindfold guide rails. Please discuss with the sales representative any further, more detailed quiestions!
Click on the picture below to browse alternative fly screen materials:
SW14 Aluclad Passive window represents a unique Nordic design of high energy efficient windows. It's certified as Passive House Component by Passive House Institute in Germany.
Window profiles are protected by International Registration of Industrial Designs no DM/083922.
SW14 Aluclad Passive Window has:
- Specific design suitable for Nordic countries. Its three gaskets ensure that profile system is highly insulated and condensation risks between frame and casement are minimized.
- 50 mm triple glazing with 2 low-E coatings (LowE or LowE1.0) and warm edge spacer (e.g. SGG Swisspacer Ultimate) gives excellent insulation and comfort.
- Sun protection coatings can be used if needed (e.g. SKN176).
- Aluminum profile system on exterior side improves the endurance of wooden window.
- Espagnolette with locking points around the casement secures the window while closed.
You can read more about Passive House on the official web site of Passive House Institute. The short idea behind the passive window is that it is a certified passive house component. As a rule the standard size window 1.23 m x 1.48 m must achieve U-value 0.80 W/m²K or better in case of glazing Ug = 0.70 W/m²K used.
