Viking-12 Window
The idea of an outward opening window is developed in Scandinavian countries in harsh climate conditions: in Denmark and in Norway such windows have been the main solution in building practice.
The construction of an outward opening window is designed to have excellent performance and functionality during different season through the year: in high humidity, in dry conditions, while it is cold or hot. Gaskets and insulated glazing units used in the design ensure air tightness and energy efficiency. Carefully chosen wood and the use of tested hardware prolong window's life span.
In addition to the traditional side hung opening type there are also projecting opening types in Viking's product line to enable easy access for both sides of a window for cleaning purposes.

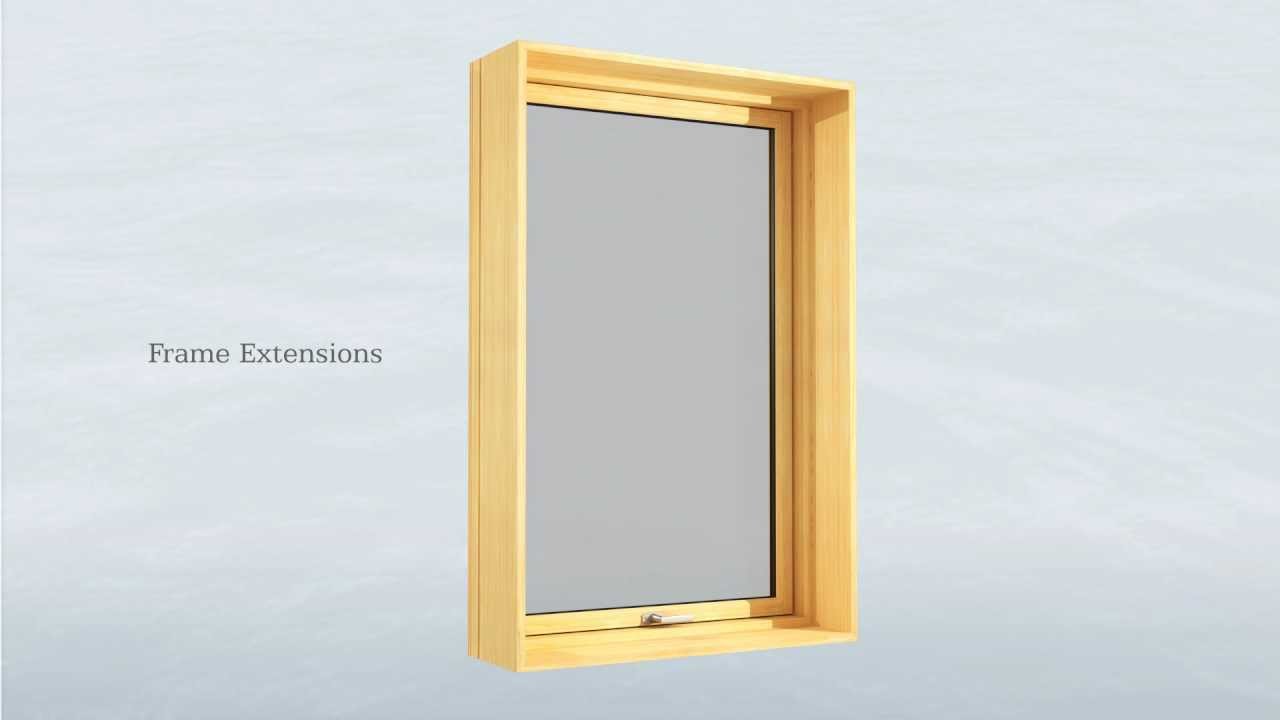

In Viking Window's product lines outward opening double glazed window is named Viking-12 Window. It is best described as a traditional window with double glazing, slim frames and internal moulded profile.
As an option you can choose more modern internel design without grooves on the sash profiles: Viking-14 modification.
Standard Configuration
NormalAdditional Options
Sun Protection
Safety
PAS24 solutionNote: U-value (0.60 – 1.2) indicates thermal transmittance of window. Smaller value equals better thermal insulation.
Certificates
| Sound Insulation | Rw = 33 dB (-1;-4) - with standard glazing |
| Frame Depth | 116 mm (128,5 mm with alucladding) |
| Material of Sash and Frame | Glue-lam pine; quality class A1-A3 |
| Glazing | 24 mm 2-glazing, one LowE glass, argon filled |
| Hardware | PN Combi 500 hinges; Mila or Fix espagnolette; Fix handle |
| Aluminium Cladding | Optional external alucladding |
| Thermal transmittance | Uw = 1,24 W/m²K (1,23 x 1,48 m opening standard window) |
| Number of sash gaskets | 1 sash gasket |
| Color of sash gaskets | Grey |
| Dimensions | Sidehung: Sash: W 388-970 mm x H 523-1798 mm Side projecting: Sash: W 395-886 mm x H 416-1666 mm Top hung: Sash: W 408-1466 mm x H 336-1386 mm Top swing: Sash: W 408-1500 mm x H 336-1635 mm |
Material of frame and sash
Glue-lam pine, Nordic timber quality class A1-A3
Finishing
Teknos Aquatop and/or VRC
RAL; NCS and translusent systems:
Glasing options
Click on the picture below to browse for more:
Glazing bar options
Selection of handles
 |
 |
 |
 |
| Fix 83 | Hoppe 0710LVK-U71Z | Hoppe 0710EVKS-6 | Titon |
 |
 |
 |
 |
| Finger locks - brass | Finger locks - chrome | Finger locks - silver | Finger locks - drop shaped |
 |
|||
| Storm hook | |||
Window boards
| Wooden boards: | |||
 |
 |
 |
 |
| A 1.0 | A 1.1 | A 2.0 | A 2.1 |
 |
 |
 |
 |
| A 3.0 | A 3.1 | A 4.0 | A 4.1 |
| Fiber boards: | |||
 |
 |
 |
 |
| A 1.0 | A 2.0 | A 3.1 | A 4.0 |
Fly screens
Viking 12 fly screen types:
 |
 |
 |
 |
| Wooden screen on hinges | Wooden screen on clips | Fiskostar blindfold | GreenteQ blindfold |
NB! For outward opening windows fly screens are fixed on the internal side - thus there must remain sufficient space for the screen frames or blindfold guide rails. Please discuss with the sales representative any further, more detailed quiestions!
Click on the picture below to browse different net materials:
Drawings Viking-12: Wooden window PDF and DWG
Drawings Viking-12: Aluclad window PDF and DWG
Drawings Viking-14: Wooden window PDF and DWG
Drawings Viking-14: Aluclad window PDF and DWG
