DK88 Window
For houses with high energy efficiency Viking Window has developed inward opening 88 mm window with thermal transmittance Uw = 0,74 W/m²K
Glazing units and hardware:
Viking DK88 windows are equipped with the Argon filled insulated glazing unit with two low-E glasses (Planitherm One) and SGG Swisspacer Ultimate warm edge solution; Ug = 0,47 W/m²K. It has ROTO hardware and Hoppe handles and optionally one can choose version with concealed hinges.

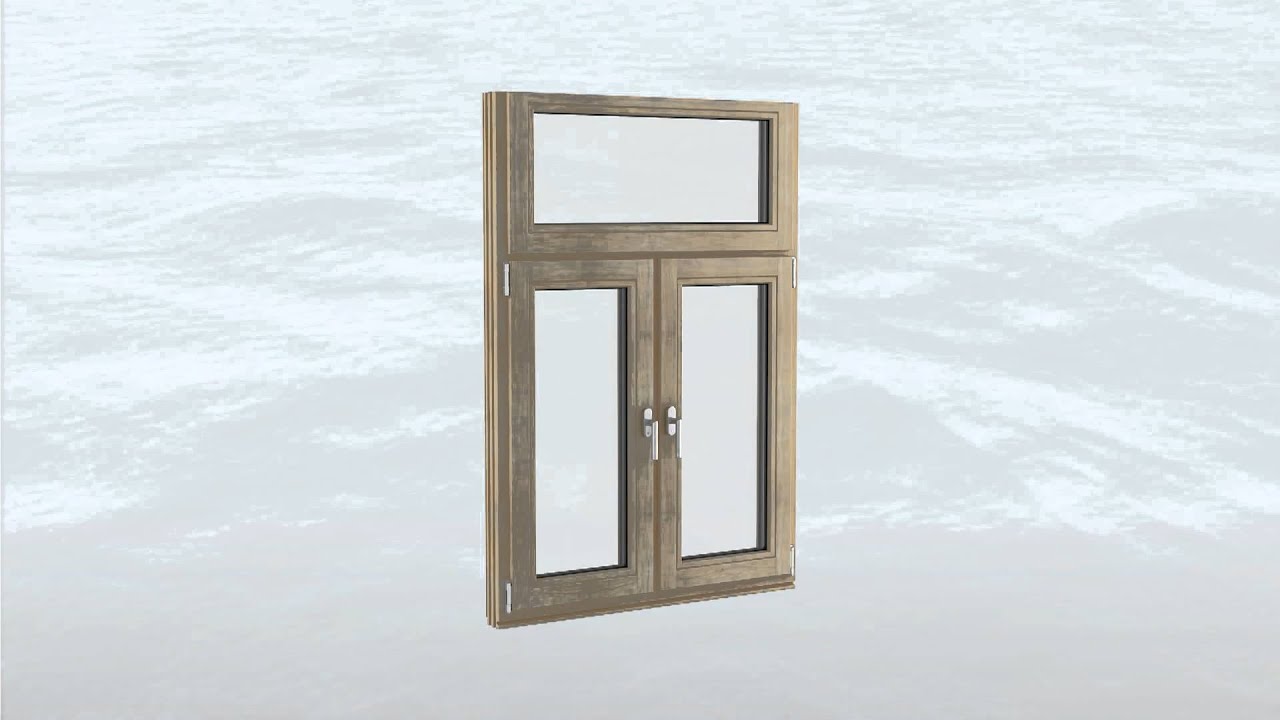

Available as timber or aluclad window. Opening types are illustrated by DK13 window animation.
Standard Configuration
Passive houseAdditional Options
Sound protection solution
Fire rated
Sun protection
near zero energy home
Safety
PAS24 solutionNote: U-value (0.60 – 1.2) indicates thermal transmittance of window. Smaller value equals better thermal insulation.
Certificates
| Sound Insulation | Rw = 34 dB (-2;-5) - with standard glasses |
| Frame Depth | 88 mm (121 mm with alucladding) |
| Material of Sash and Frame | Glue-lam pine; quality class A1-A3 |
| Glazing | 50 mm 3-glazing, two Low-E glasses and argon filled |
| Hardware | ROTO; Hoppe handle |
| Aluminium Cladding | Optional external alucladding |
| Thermal transmittance | Uw = 0,74 W/m²K (1,23 x 1,48 m opening standard window) |
| Number of sash gaskets | 2 sash gaskets |
| Color of sash gaskets | White, grey, beige, brown |
| Dimensions | Tilt and turn opening: Turn opening (sidehung): Tilt opening: Tilt before turn opening: (i.e TBT): |
Material of frame and sash
Glue-lam pine, Nordic timber quality class A1-A3
Finishing
Teknos Aquatop and/or VRC
RAL; NCS and translusent systems:
Glasing options
Click on the picture below to browse for more:
Glazing bar options
Selection of handles
 |
 |
 |
| Hoppe London 013S-U34 chromium satin | Hoppe London 013SV-U34 silver | Hoppe London 013-U34 golden |
 |
 |
 |
| Hoppe Tokyo 0710S-U26 chromium | Hoppe Tokyo 0710SV-U26 chromium satin | Hoppe Tokyo 0710-U26 champagne |
Additional option
Low threshold balcony door
 |
 |
| View from inside | View from outside |
Window boards
| Wooden boards: | |||
 |
 |
 |
 |
| A 1.0 | A 1.1 | A 2.0 | A 2.1 |
 |
 |
 |
 |
| A 3.0 | A 3.1 | A 4.0 | A 4.1 |
| Fiber boards: | |||
 |
 |
 |
 |
| A 1.0 | A 2.0 | A 3.1 | A 4.0 |
Fly screens
DK88 fly screen types:
 |
 |
 |
| Aluminium screen | Aluminium screen on hinges | Aluminium color options |
NB! For intward opening windows fly screens are fixed inside the frame in front of the sash or on the external side of frame - thus there must remain sufficient space for the screen frames. Please discuss with the sales representative any further, more detailed quiestions!
Click on the picture below to browse different net materials:
Drawings: Timber window PDF and DWG
Drawings: Aluclad window PDF and DWG
Square edge aka 4k aluclad DK88 window drawings: PDF and DWG
